MCL&H ROYAL WHARF PIERS

  • PROJECT TYPE bridges

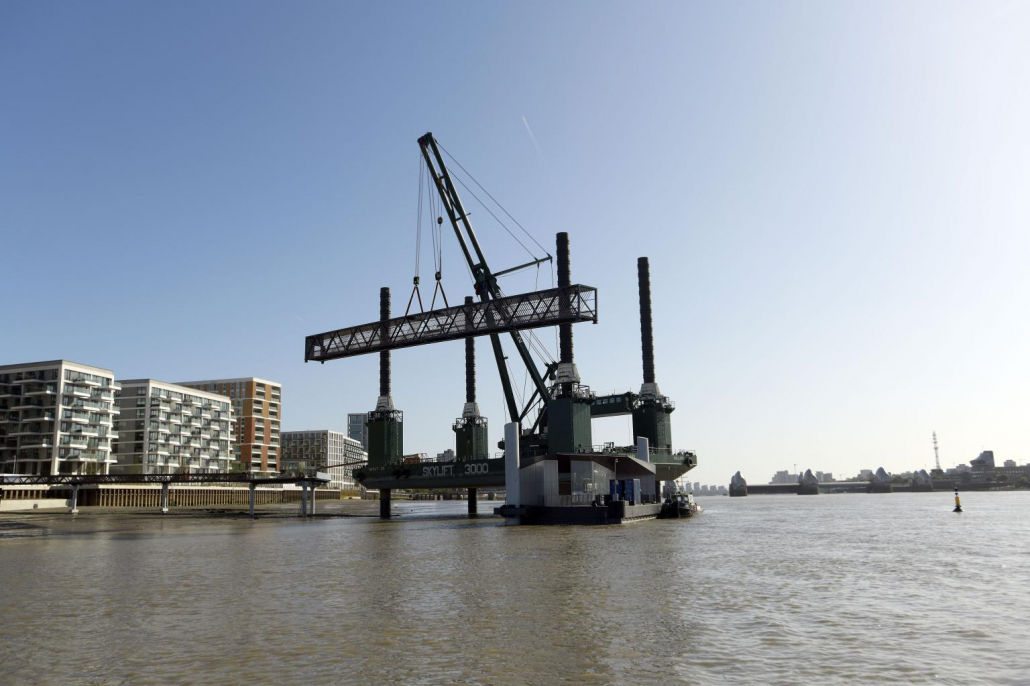

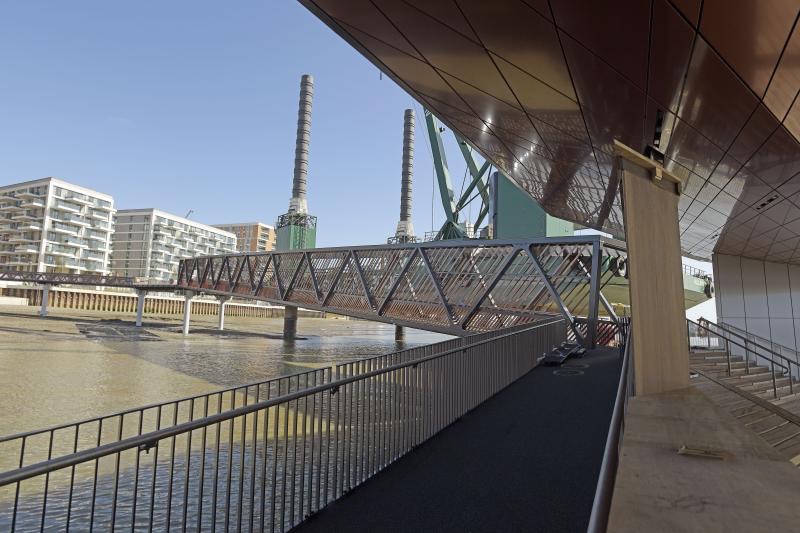

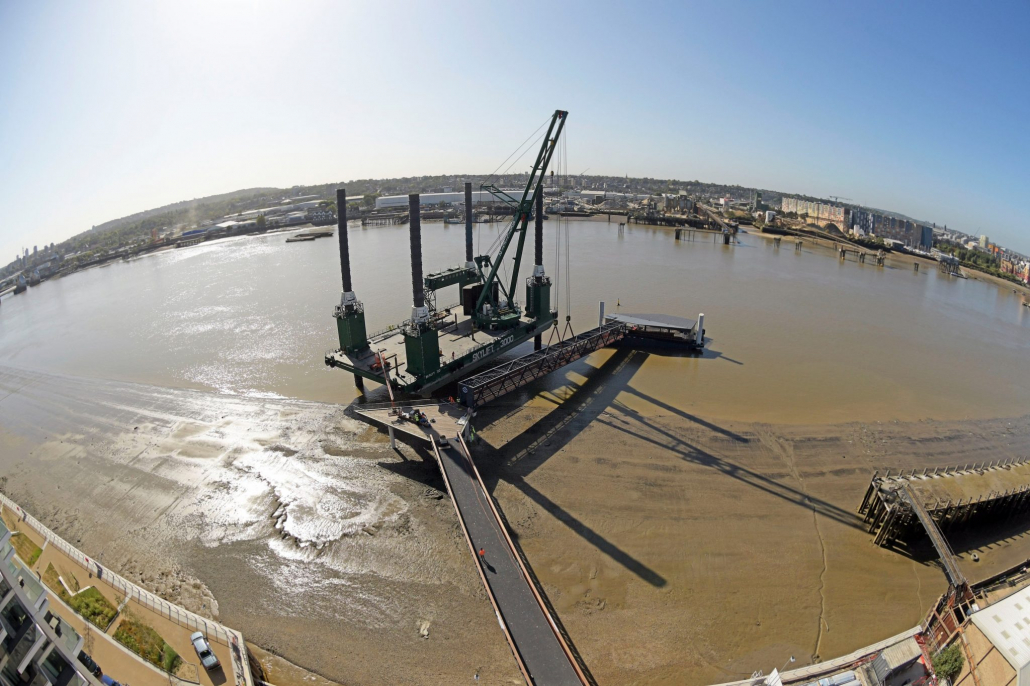

Design, fabrication and transportation of: Fixed Bridge (3 spans) on piled supports to provide acces from the riverside walkway to the Viewing Platform; A Viewing Platform on piled supports, provideing approximately 170 m2 of platform, integrating the bankseat for the Canting Brow A Pontoon, parallel shaped, to provide a berthing facility for Thames Clipper river ferries and a covered waiting area for customers using the service.

MAIN DIMENSIONS
Fixed Bridge

  • Length o.a. 49.15 metres
  • Length each 15.00 – 17.00 metres
  • Width 4.50 metres

Viewing Platform
Fixed Bridge

  • Length 20.00 metres
  • Width 16.00 metres

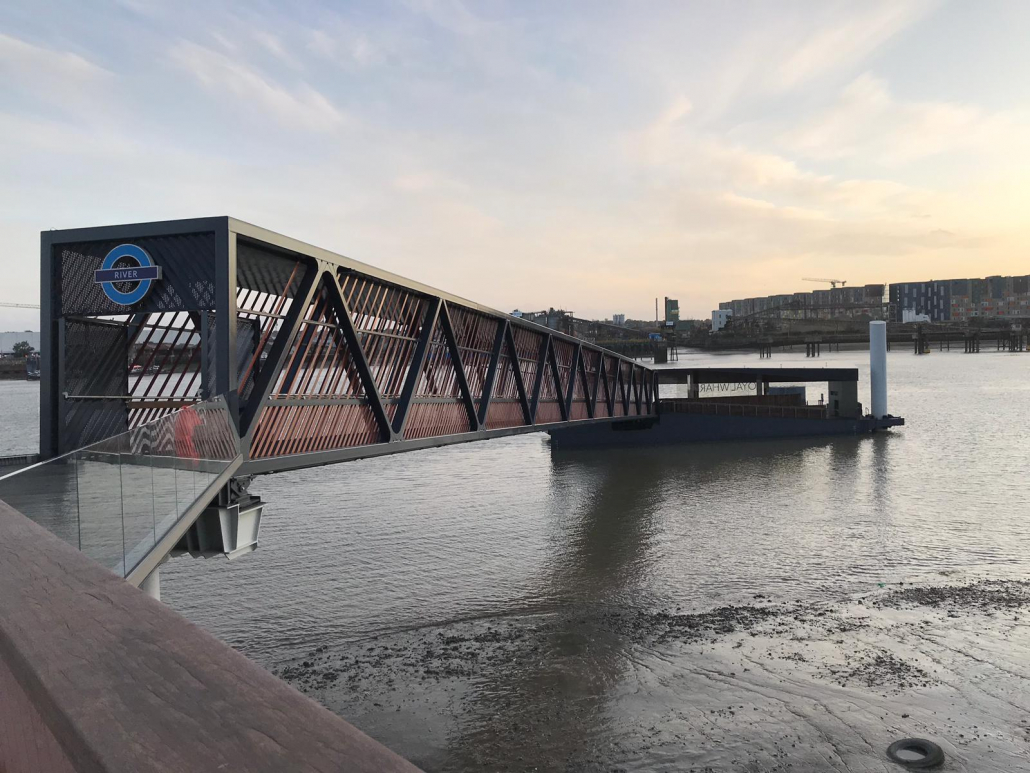

Canting Brow

  • Length 65.00 metres
  • Width 3.50 metres
  • Height 4.00 metres

Pontoon

  • Length 30.00 metres
  • Width 13.30 metres
  • Height 2.30 metres


SPECIAL FEATURES
Work of Art under rules and regulations of Nex–Architecture (Alan Dempsey).
NLA (New London Architecture) Infrastructure and Transport Award 2019.

All in accordance with Lloyds Register of Shipping Class notation LR * AT-Passenger Linkspan, for service at Royal Wharf Pier – London, ENGLAND and in accordance with the Classification of Linkspan Rules and Regulations July 2018.

DATE COMPLETED
September 2019
